STB TV coaxial conector with brackets

STB TV coaxial conector with brackets
Product name : STB TV coaxial conector with brackets
Item : IEC Connector-13
Details :

Electrical characteristics

Rated:

voltage. current. 30V, 1A

Impedance:

75Ω

VSWR:

~860MHz 1.8max

Insulation resistance:

DC500V 1000MΩ min.

Dielectric Strength:

AC1000V 1minute

Contact resistance:

10mΩ max

○Mechanical characteristics

Synthetic insertion & withdrawal force:

9.8N~58.8N

Life:

50 times

○Others

RoHS correspondence

Reflow 260℃max. (for chassis)





Related Products:

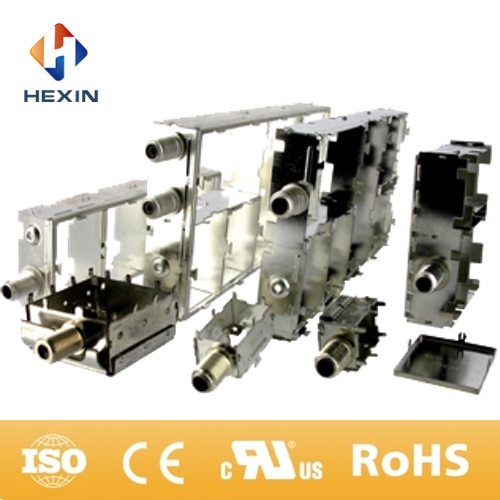

Shield frame for RF connector shield cans from china

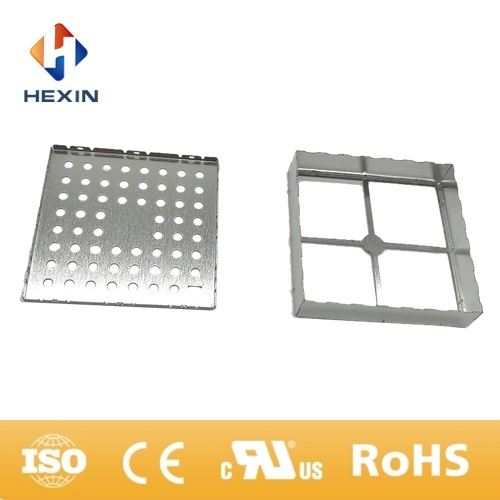

Shield Cans for RF connector Die casting parts for SFP shell    RF/EMI  shielding cans








←[Previous : IEC Connector-14] [Next : IEC Connector-12]→

Related Products :
75OHM F type connector copper shell
F Connector-20
75OHM F type connector copper shell

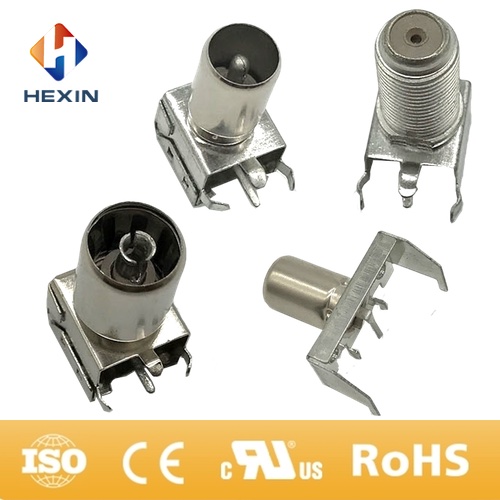

14.5mm IEC male type connector for pcb mount
