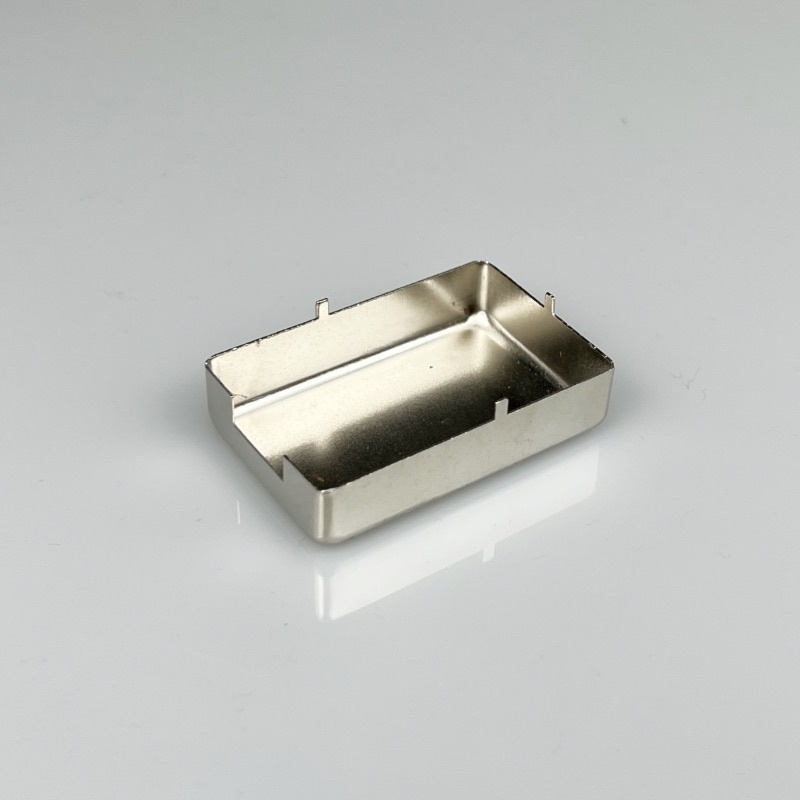

Deep drawn metal shielding can

产品

Deep drawn metal shielding can

尺寸:51X33x15.1MM

平面度:< 0.10 mm typical

  • 产品详细


One-Piece Board Level Shields

One-piece designs offer shielding at the component level on a PCB where access to shielded components is not necessary. There are no tooling costs associated with standard off-the-shelf designs.

Features and Benefits

  • Standard offering available
  • Surface Mount
  • Rigid Corner
  • Tight coplanarity tolerances
  • Different metal substrate options
  • Different plating options
  • Vented and unvented options
  • Tape and Reel packaging
  • No tooling costs with standard off-the-shelf designs
  • Shielding Effectiveness typcially 40 dB @1 GHz

Customized PCB Shield Cans

As cans are custom designed please contact our sales department to discuss your requirements. We will need a drawing or specification giving overall dimensions, type of material, plating, through hole/surface mount configurations, quantity, tolerances, packaging and any special requirements.

Production Capabilities

Hexin has considerable experience in the design, manufacture and testing of a wide range of shielding products and is able to help customers find solutions to their shielding requirements.


Product Drawing

27x23x15.8 EMI PCB Shielding Can.PDF
