nickle silver metal stamp shielding in Jedec Tray

产品

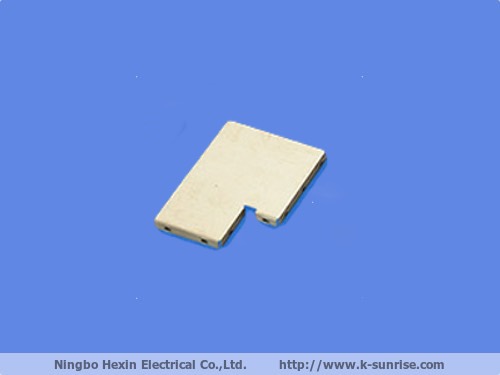

nickle silver metal stamp shielding in Jedec Tray

  • 产品详细

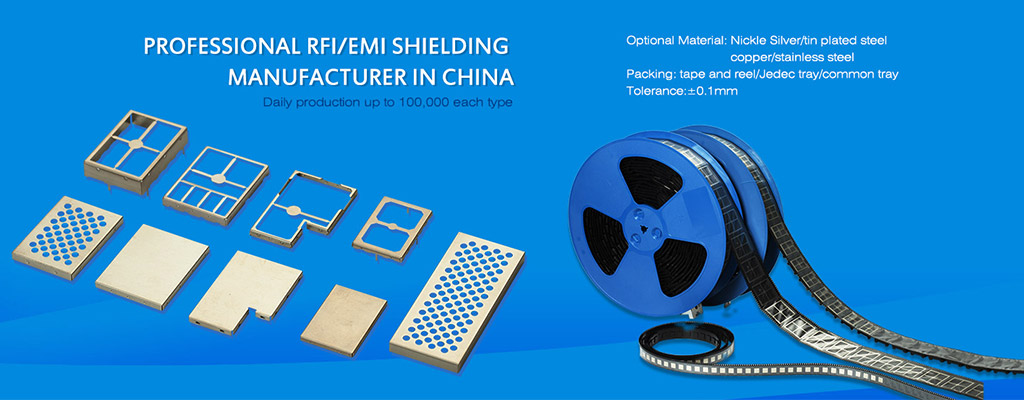

hexin pcb rf shielding cover

·    Materials to make this PCB shields can be nickel silver or tin plate

·    Test: 96H salt-spray testing, 2D testing, plainness testing, surface Rockwell testing

·    OEM service: the material and finishing treatment can be customized

 Material

 Nickle Silver / Tin Plated Steel / Copper /SUS

 Technique

Stamping / Progressive stamping
Deep draw / CNC lathed

 Size

 Custom size

 Min thickness

 0.08mm

 Certificate

 SGS with RoHs

 OEM & ODM

 Acceptable

Tolerance

 ±0.08mm

Flatness

Tolerance

 ±0.13mm

 Packing

 shield cover in tray, shield frame in tape and reel

 Delivery time

 7-12 days

Application

Board level shielding is electronic components for telecommunications, computers, consumer goods, appliances, medical device equipments; Metal parts for autocar, motorcycle, electric motors, etc

Hexin Advantages

Uncompromising Precision

We know the importance of precision parts, even a small mistake can ruin the whole machine. That’s why our customers rely on us for thorough accuracy. We offer greatest satisfaction in the industry by controlling processing errors as following:

·       Cutting error : within +/- 0.01mm

·       Bending error : within +/- 0.03mm

·       Straightness tolerance (max) : 0.05mm

·       Position Tolerance (max): 0.05mm

·       Perpendicularity tolerance (max) : 0.05mm

·       Minimum processing thickness : 0.08mm

·       Production procedure is ISO9001:2008 certified

Shorter lead time

We specialized in Medium to High-Volume Production. Equipped with professional production lines we have the capabilities to offer you a complete metal stamping solution. Production time for 1 million units will be just 7 days.

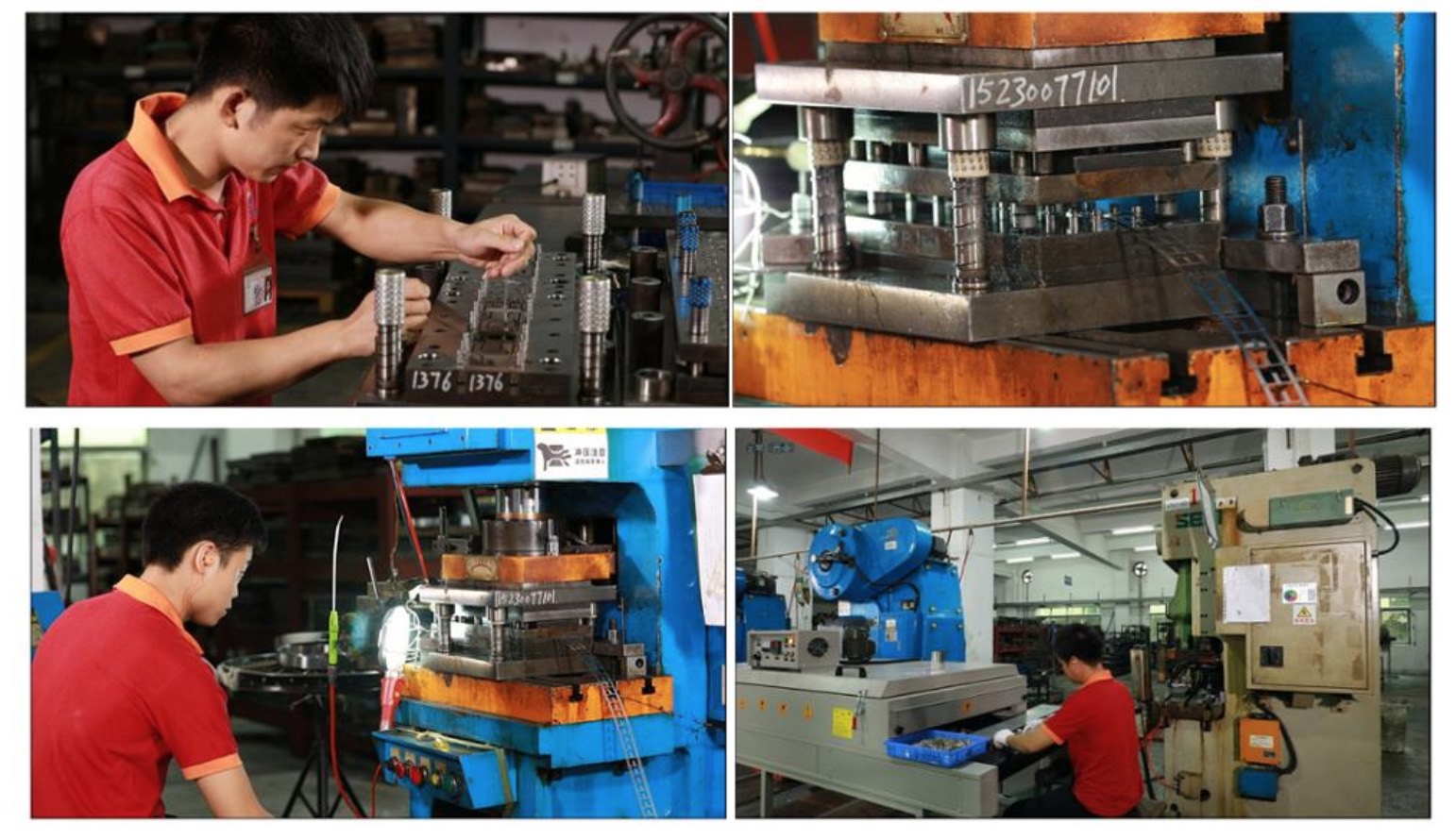

Complete In-House Tool & Die Services

We have extensive die design and manufacturing experience. So far, over 500 custom dies have been made for our clients.tooling for RF shield cans and frame
