Precision Tooling Design & Manufacturing
From concept to production, Hexin delivers high-precision tooling solutions that ensure consistency, efficiency, and quality in every stamped component.
- All uploads are secure and confidential. NDA available.
Precision Tooling Design & Manufacturing
At Hexin Electronics, we understand that precision tooling is the foundation of quality metal stamping. Our in-house tooling workshop integrates design, machining, assembly, and maintenance, enabling fast response and full control over quality and lead time.
Whether you need a prototype die or a progressive stamping tool for mass production, our engineering team designs with accuracy, durability, and manufacturability in mind — ensuring each tool performs reliably across millions of production cycles.
—Explore our standard products and quickly find the right fit for your PCB design
Advantages
We combine in-house tooling, precision machining, and strict quality control to ensure reliable performance and fast delivery. Our optimized designs reduce production costs while maintaining tight tolerances and consistent quality. Every project benefits from Hexin’s flexibility, engineering expertise, and long-term reliability.
Faster Lead Time
Prototypes and production dies completed in as fast as 15 days, supporting rapid project launch.
Consistent Precision
Tight tolerance and dimensional stability ensure high repeatability and quality consistency.
Cost Efficiency
Optimized tooling design reduces setup time and material waste for mass production.
Long-term Reliability
Each tool undergoes life-cycle testing and preventive maintenance to guarantee continuous output.
Our Capabilities
At Hexin Electronics, we design and manufacture precision stamping tools entirely in-house, equipped with CNC machining, EDM, and wire-cutting systems.
Our experienced engineers ensure every mold achieves tight tolerances and superior durability, supporting both prototype and mass production requirements.
The tooling workshop enables rapid development cycles — typically 15–20 days for new molds — while maintaining strict quality control through dimensional inspection and trial testing.
With integrated design, fabrication, and maintenance, Hexin ensures consistent accuracy, stable production output, and cost-effective results for every project.
- In-house tooling workshop with CNC milling, EDM, and wire-cutting machines
- Tooling lead time: typically 15–20 days for new molds
- Material selection: tool steel, tungsten steel, SKD11, or customized per application
- Tolerance control: ±0.01 mm for precision die parts
- 3D modeling & simulation for structural optimization
- Maintenance & repair services to extend tool life
workflow
At Hexin Electronics, every tooling project follows a structured and transparent workflow — from design review to final delivery.
Our engineers begin with a thorough evaluation of customer drawings, followed by precision 3D design, CNC machining, and detailed trial adjustments.
Each mold is tested, verified, and refined to ensure stable performance before mass production.
This systematic process allows us to achieve faster turnaround, consistent accuracy, and long-term reliability for every project.
1.Design Review
Evaluate drawings and propose structure optimization

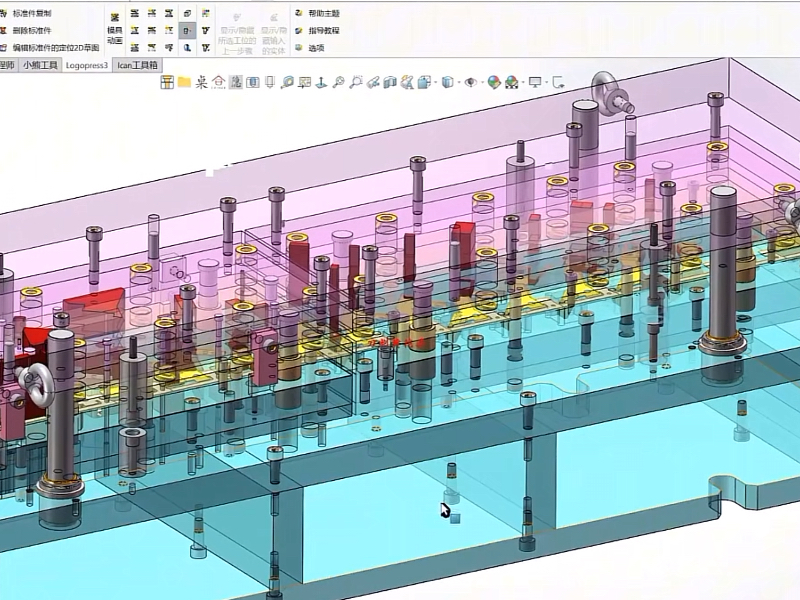

2.Tooling Design

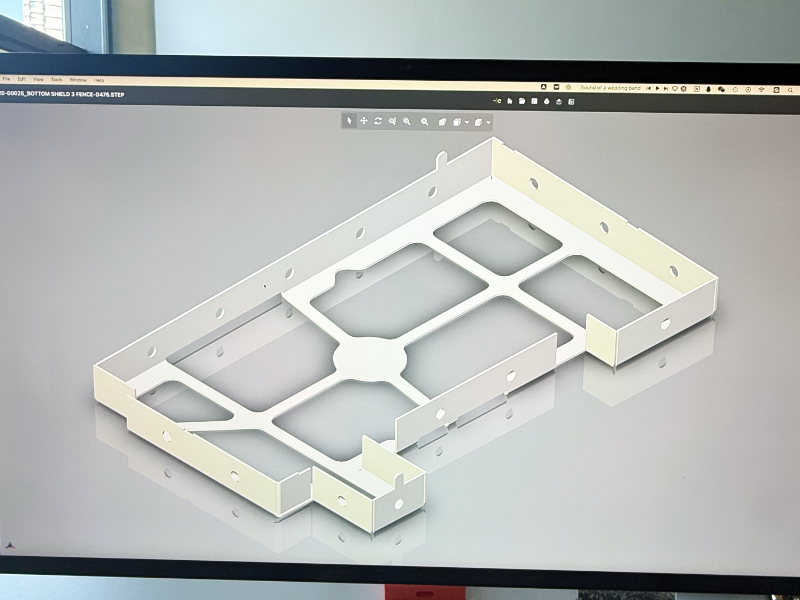

3D modeling & component detailing
3.Machining & Assembly
CNC / EDM processing and mold fitting

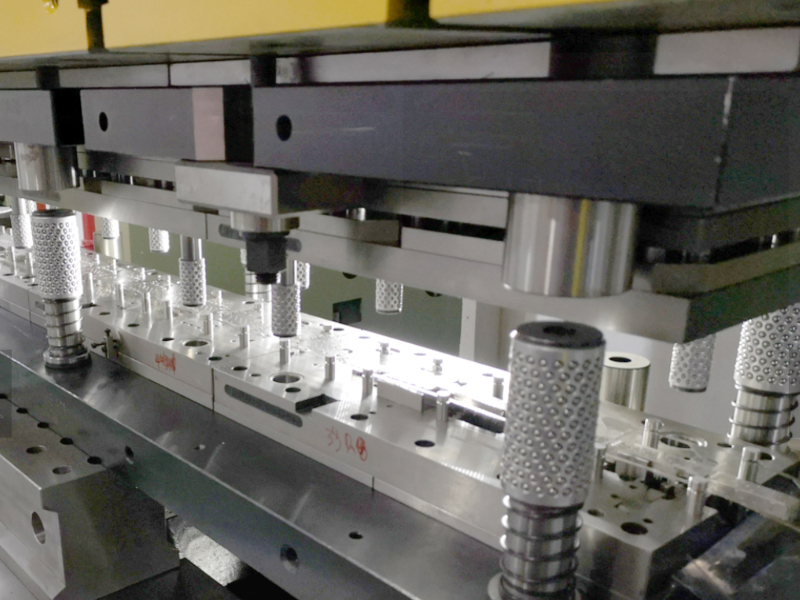

4.Trial & Adjustment
Sample stamping and fine-tuning
Quality & Engineering Support
At Hexin Electronics, quality begins with tooling.
Every mold design is reviewed by our engineering team to ensure manufacturability, durability, and precision before production starts.

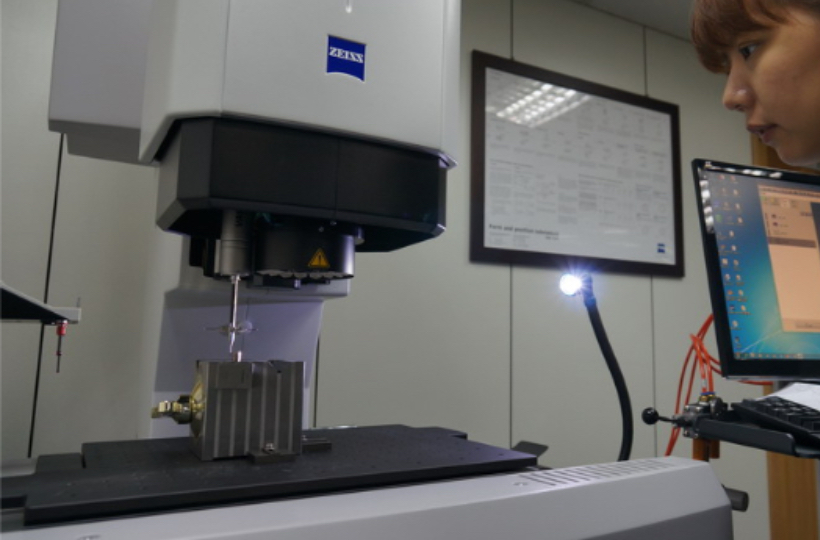

We perform detailed flatness checks, dimensional inspections, and trial stamping tests to guarantee each tool meets customer specifications.
Continuous maintenance and on-site engineering support keep our molds performing at peak efficiency throughout their lifecycle.
Our customer are Happy & Prototyping sample
“The samples came out really well — precise, clean, and exactly as we expected. The tight tolerance makes them fit perfectly on our PCB”
Alexander
“Hexin’s prototypes saved us both time and money. We didn’t have to invest in tooling right away, which was a big advantage”
Victoria
“They understood our needs quickly and delivered the samples faster than we thought. Very professional team to work with!”
Daniel
Ready to bring your design to life
Touch wit us
Contact our engineering team to discuss your design, material selection, and production plan.
TALK WITH OUR SALES
We specialize in precision PCB metal stamping, offering shielding cans, spring contacts, heat sinks, and custom solutions with reliable quality and fast delivery.
Email Us
Sales@k-sunrise.com
Call Us
8613780042551
Hexin Electronics — From concept to completion, we make precision happen.
Related Services
Rapid Prototyping & Sampling
Precision Tooling Design & Manufacturing

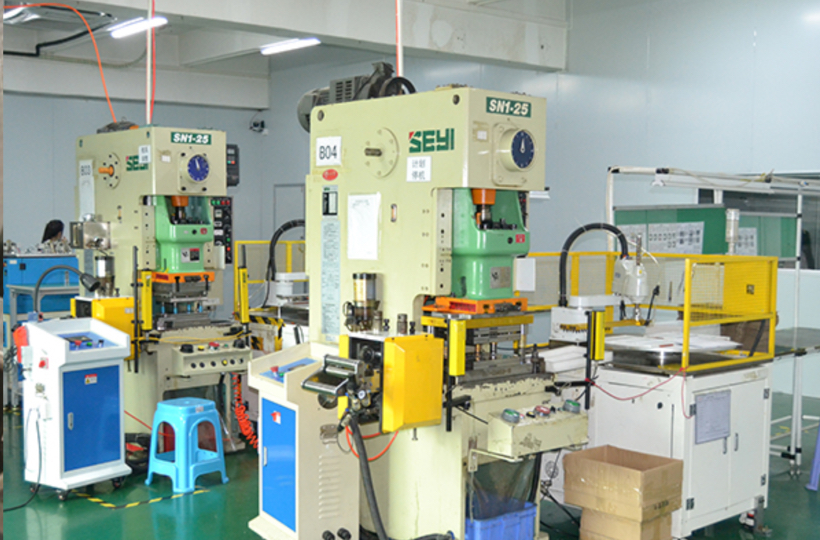

Mass Production

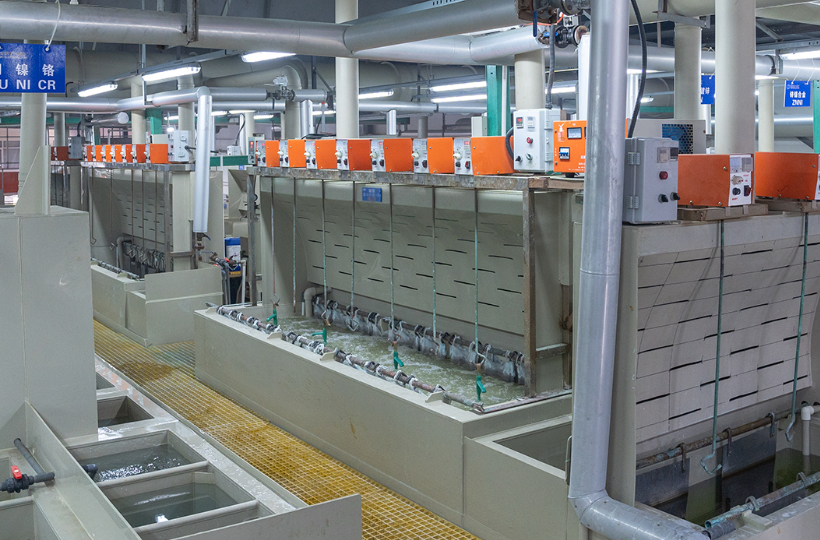

Surface Finishing & Plating
