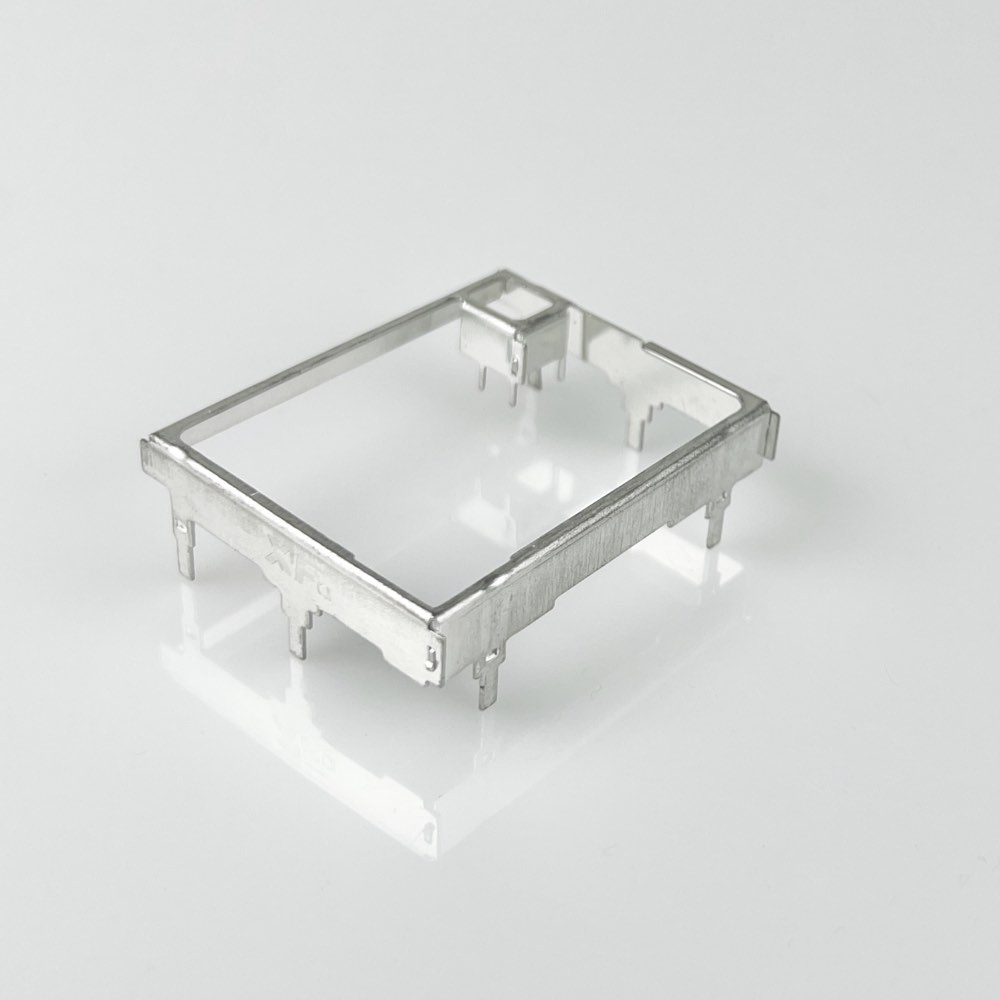

FM Tuner shielding cans

Products

FM Tuner shielding cans

Dimension(L X W X D) MM:47X22X15.2

Flatness / Coplanarity:< 0.08 mm typical

Material:Tin Plated,Nickel-Silver,SUS,Aluminum alloys

Mounting Type:Surface Mount

Plating Options:Tin, Nickel, Other Options Available

Packaging:Tray, Tape and Reel, Foam, Layer Pack

Moisture Sensitivity Level:1

Storage Temperature (C):10°-25° C

ROHS Compliant:Typical 6-12 Months

  • Details
  • About Us

One-Piece Board Level Shields

One-piece designs offer shielding at the component level on a PCB where access to shielded components is not necessary. There are no tooling costs associated with standard off-the-shelf designs.

Features and Benefits

  • Standard offering available
  • Surface Mount
  • Rigid Corner
  • Tight coplanarity tolerances
  • Different metal substrate options
  • Different plating options
  • Vented and unvented options
  • Tape and Reel packaging
  • No tooling costs with standard off-the-shelf designs
  • Shielding Effectiveness typcially 40 dB @1 GHz

Customized PCB Shield Cans

As cans are custom designed please contact our sales department to discuss your requirements. We will need a drawing or specification giving overall dimensions, type of material, plating, through hole/surface mount configurations, quantity, tolerances, packaging and any special requirements.

Production Capabilities

Hexin has considerable experience in the design, manufacture and testing of a wide range of shielding products and is able to help customers find solutions to their shielding requirements.


Product Drawing

47X22X15.2 EMI PCB Shielding Can.PDF

NINGBO HEXIN ELECTRONICS CO., LTD. Be Located In NingBo China


Started:

March 18, 2008

Ownership:

100%  Privated Joint-Stock Company

Number of Employees:

Approximately 80

Markets Served:

» Satellite set-top box (STB) industry

» Data communications industry

» Stamping industry

» FTTH industry

History:


2008 Hexin Electronics is Started

Ningbo hexin factory ,board shield supplier from china ,shielding cans ,shielding fence

2009 HeXin Electronics Factory Established in Ditang

2010 Hexin Electronics ISO 9001:2000 registered

Hexin Factory


Previous Product:FM Tuner PCB Board level shielding

Next Product:shielding cover pcb shield case rf shield can
