heat sink with shield

heat sink with shield

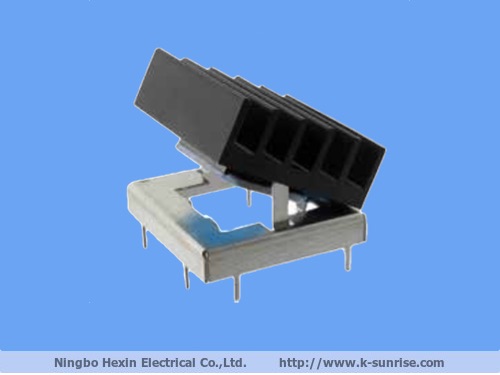

Product name : heat sink with shield
Item : Shielding Cover-135
Details :

Hexin Electronics  PCB Board Shields for EMI Protection shield RF input, output, and amplifier stages as well as oscillators and EMC sensitive components with plastic cases. The shielding effectiveness of these tin-plated cabinets is up to 60dB from 500MHz to 3GHz. Hexin PCB Board Shields for EMI Protection consist of two components: grid frame and removable cover. The grid frame is available in surface-mount and through-hole types. The regular offering of the Hexin PCB Board Shields for EMI Protection shielding cabinets includes  standard sizes.

Features
  • Tin plate in accordance with DIN EN 10202/10203RoHS Compliant
  • Shielding effectiveness up to 60dB @ 500MHz to 3GHz
  • Two-part case consisting of a solderable grid frame (SMD/THT) and a removable cover
Applications
  • To prevent EMI radiation into:
  • RF output stages
  • RF input and amplifier stages
  • Oscillators
  • EMC sensitive parts in plastic cases
